What Size Wine Cellar Cooling System Do I Need?

Do not size a wine cellar cooling system by square footage alone

The size of a wine cellar cooling system should be based on heat load, not just the floor area. Two wine rooms with the same square footage can need different equipment if one has glass walls, exterior exposure, poor insulation, high ceilings, warm adjacent spaces, or frequent door openings.

A system that is too small may run constantly and fail during hot weather. A system that is too large may short cycle, create uneven temperatures, and manage humidity poorly. Correct sizing is about matching the room and equipment, not simply choosing the next bigger model.

• Measure room volume, not just floor area.
• Account for glass, doors, ceiling height, and wall exposure.
• Review insulation, air sealing, and vapor-control details.
• Consider the target temperature and expected door use.
• Choose equipment after confirming how heat will be rejected.

Room construction has a major effect on load

A well-built wine cellar gives the cooling system a fair chance. A leaky or under-insulated room adds heat and moisture continuously. Large glass areas, frameless doors, sun exposure, recessed lighting, unsealed penetrations, and warm adjacent rooms can all increase the load.

This is why a sizing conversation should include the contractor or designer when the room is still being planned. If the room envelope is weak, upsizing the equipment may hide the problem for a while but create noise, short cycling, or condensation later.

• Glass-heavy rooms need special attention during sizing.
• Exterior walls and hot adjacent spaces increase heat load.
• Door gaps and poor thresholds can add both heat and moisture.
• Lighting and electrical equipment inside the cellar can add load.
• Construction quality matters as much as the equipment rating.

Equipment type changes how sizing feels in real use

A through-wall unit, self-contained unit, ducted system, and split system may have different performance behavior even when the listed capacity looks similar. Airflow pattern, noise, heat rejection, duct losses, condenser location, and control strategy all affect how the system performs in the actual cellar.

For example, a ducted system may need careful duct design to deliver its rated capacity into the room. A split system may perform well if the condenser has good airflow, but poorly if it is placed in a hot or restricted location. Sizing and installation details are tied together.

• Consider duct losses and grille restrictions for ducted systems.

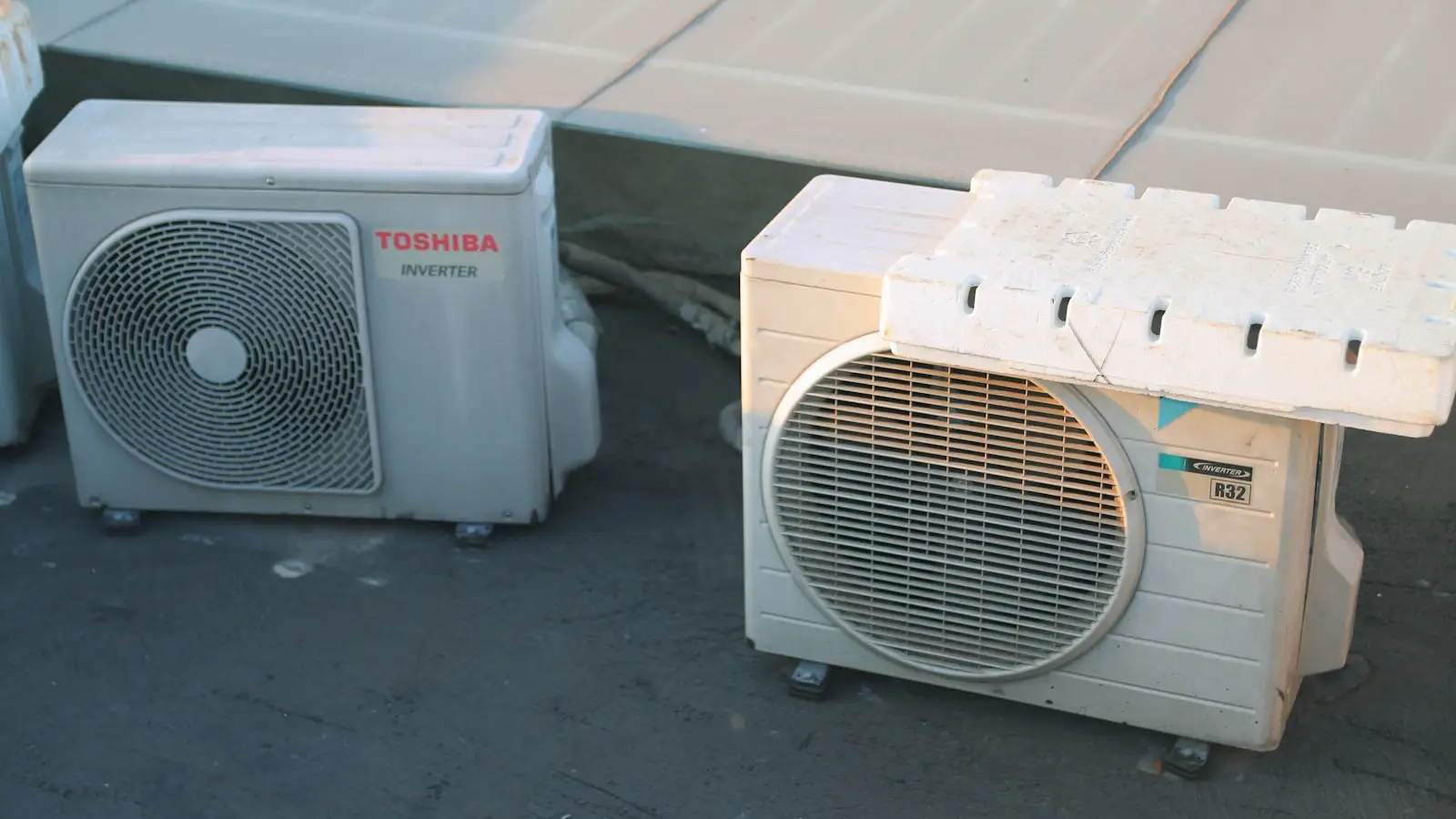

• Review condenser location and line routing for split systems.
• Check warm-side ventilation for self-contained and through-wall systems.
• Confirm supply and return airflow can reach the whole room.
• Compare equipment based on real installation conditions, not just model capacity.

Signs the existing system may be incorrectly sized

If a wine cellar cooling system runs constantly, cannot recover after door openings, warms during heat waves, short cycles, or leaves warm and cold spots, sizing may be part of the issue. Maintenance problems can cause similar symptoms, so sizing should not be blamed before the equipment and room are checked.

In replacement situations, the existing unit size is useful information but not automatically the right answer. The room may have changed, glass may have been added, racks may block airflow, or the original system may have been a compromise.

• Undersizing can show up as constant runtime and poor recovery.
• Oversizing can show up as short cycling and humidity instability.
• Poor airflow can look like a sizing problem.
• Heat-rejection problems can make a correctly sized unit behave undersized.
• Replacement sizing should be based on the current room, not just the old model.

What information helps a specialist size the system

To size a wine cellar cooling system, gather practical room details. Photos and measurements are more useful than a guess about bottle count. The right contractor will want to understand the enclosure, glass, doors, surrounding spaces, equipment location, airflow path, drainage, and service access.

Cellar HVAC can help size wine cellar cooling systems for new installations and replacements. The recommendation should be based on the room that is actually being built or used.

• Room dimensions and ceiling height.
• Glass area, door type, and wall or ceiling exposure.
• Insulation and vapor-control details if known.
• Preferred system type and possible equipment locations.
• Photos of the room, adjacent spaces, and proposed heat-rejection area.
